Manufacturer Name

Shandong Liangshan Huayu group

Type

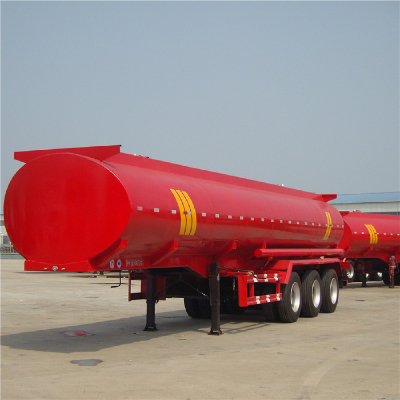

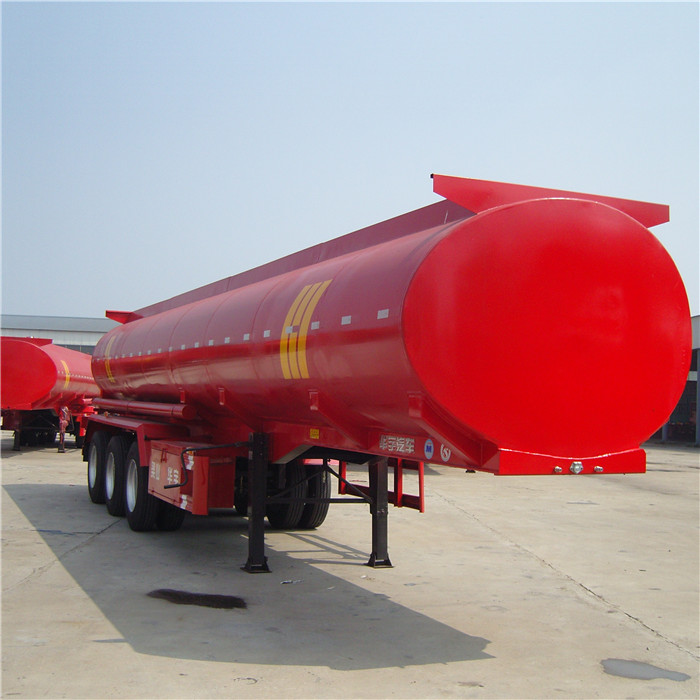

50000L   fuel semi trailer

Shipping Terms

Shipping by bulk cargo because its huge body

Delivery time

Production Term 15 workdays for one set oil tank semi trailer

Weight:

Tare Weight

11800KG

Tank capacity

50000L plus3~ 5% ullage per compartment

Loading Capacity

45T

Axle Weight Load

13T

Specification:

Axle number

Three

Axle specs.

FUWA Or BPW

Suspension

Common or BPW Air Mechanical Suspension

Suspension Frame

With

King Pin

JOST 2.00 or 3.00 inch (Bolts type)

Outside Dimensions(L*W*H)

12500×2490*3750mm (by you requirement)

Support legs

JOST D200T

Rim

9.00-22.5

Rear ladder

With ( as in the picture)

Top walkway

According to the customer requirement

Compartment

1-7( means can be loading seven different oil )

Manhole

3 pieces or more (Diameter is 500mm)

discharge mouth

diameter is 280mm (With safety pressure valve(Bottom Valve+ Ball valve )/ 3 pieces

DISCHARGE HOSE

6m with Hose carries or according to customer requirement

Flow meter

Without (can be choose freely)

LED Lights

1 set

FIRE EXTINGUISHER

Two pieces

Tire:

Number of Tire

12.00R-22.5 triangle BRAND /12 pieces

Spare Tire Carriers

2 pieces

The material of tanker

The tank body

5mm Q235 Carbon steel plate. The shape is elliptical or square

The foreside and back side head

6mm Q235 Carbon steel plate

The shape of tank

elliptical or square

Shell Finish

The outer of the tank

painted. according to the customer’s requirement.

The internal of the tank

without paint

Brake:

Brake Chamber

Four double and two single chamber( TKL brand )

ABS system

Without ( Can be choose freely)

Emergency Valve

WABCO

Electrical:

Voltage

24V

Receptacle

7 ways(7 wire harness)

Light color:

Side marker lamp

Orange

Rear lamp

Red

Turn signal lamp

Orange

Miscellaneous:

Painting

According to the requirement of the buyer

Marking

According to the requirement of the buyer

Side Guard

Standard

Mudguard

with

Tools box

One pieces (1000*500*500mm)( equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
