Product Details
- Size: 12400mm*2500mm*3750mm
- Place of Origin: shandong
- Brand Name: HYD
- Model Number: LY9409CKXY
- Weight: 7200.000 kg

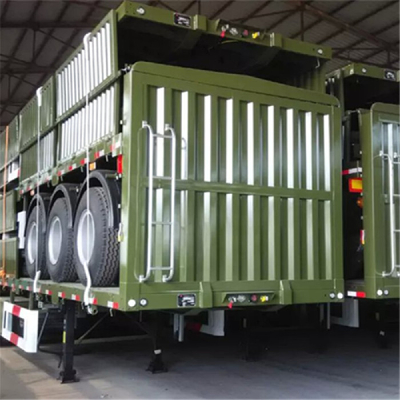

3 AXLE STAKE SEMI TRAILER | |
DIMENSIONS | |
| Tare weight | 7200kg |
| Size | 12400mm*2500mm*3750mm |
| Payload | 35T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel T700, welded by automatic submerged-Arc processes. Top flange 10mm,width140mm;Middle Flange 8mm height 500mm;bottom flange10mm,width 140mm |
| Side beam | 14# channel steel(Q235) |
| Cross member | 12# channel steel(Q235) |
| Floor | 1.5mm checkered plate |
| Side wall | 600mm side wall+1550mm fence |
| Front board | 2150mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 11.00R20 triangle brand 12pcs |
| Wheel rim | 8.0 China brand 12pcs |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | SAF brand two-speed, manual operating ,heavy duty landing gear 28T |
| Ladder | Mechanical ladder |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Lights | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
- Size: 12400mm*2500mm*3750mm
- Place of Origin: shandong
- Brand Name: HYD
- Model Number: LY9409CKXY
- Weight: 7200.000 kg
