Product Details
- Size: 13000mm*2500mm*3000mm
- Place of Origin: Shandong
- Brand Name: HUAYU
- Model Number: HYSWT
- Weight: 8000.000 kg

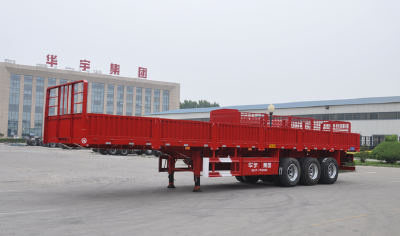

3 AXLE SIDE WALL SEMI TRAILER | |
DIMENSIONS | |
| Tare weight | 8000kg |
| Size | 13000mm*2500mm*3000mm |
| Payload | 60T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm checkered plate |
| Side wall | Height 600mm thickness 1.5mm |
| Front board | Height 1.5m |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Kingpin | JOST brand 2” bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Twist lock | Optional |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box、one spare tire carrier、one crank、one shaft head wrench、four side light、two rear light |
- Size: 13000mm*2500mm*3000mm
- Place of Origin: Shandong
- Brand Name: HUAYU
- Model Number: HYSWT
- Weight: 8000.000 kg
